Vertical CONTİNUOUS Drying

Vertical CONTİNUOUS Drying

We produce 10 models of continuous flow dryers for grain and oleaginous seeds, with capacity from 13 to 45,5 ton.

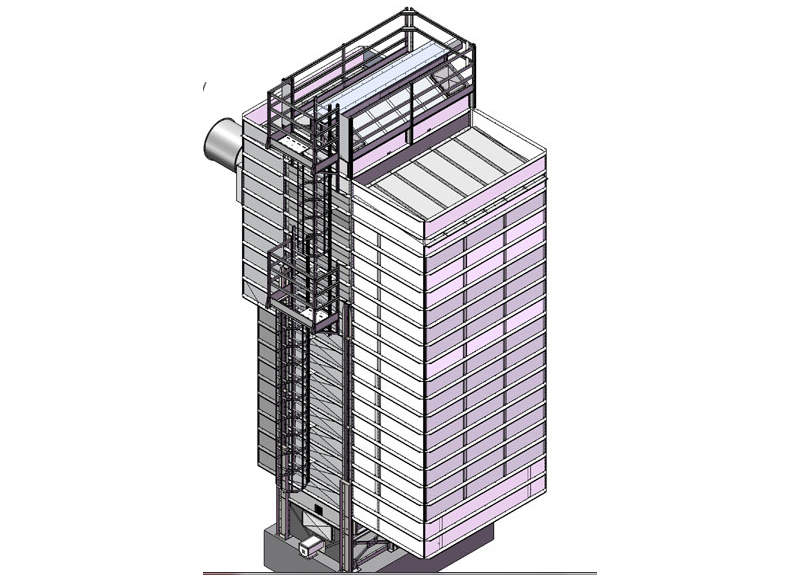

The drying column is composed of self-supporting panels in galvanised sheet steelwith external pilars which number varies according to the machine height; the ducts are fixed to the panels by means of 8 bolts each, so that a particularly strong structure is created.

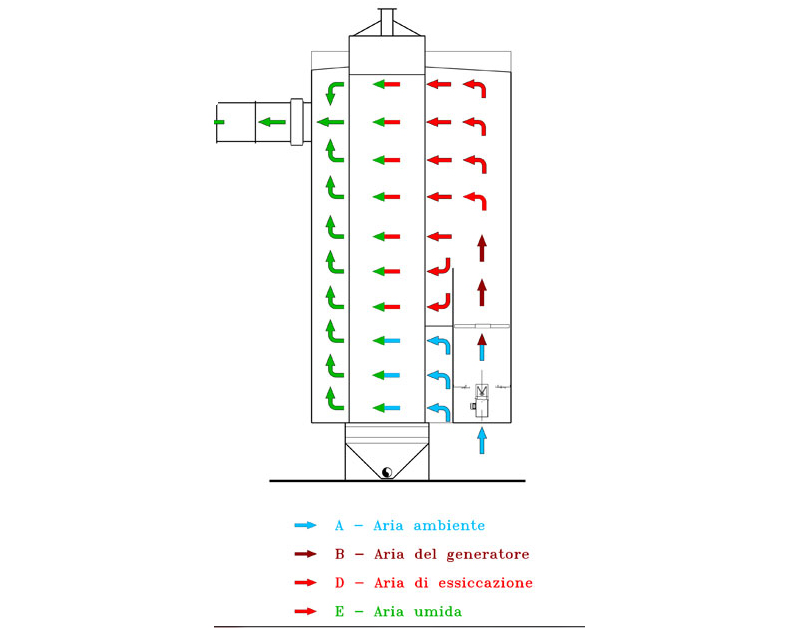

The ducts for hot air distribution and those for not saturated air collection are made in "ALUZINK" steel whereas the ducts for saturated air expulsion are made in stainless steel.

The air distribution chambers are constructed with panels in "ALUZINK", a highly resistant to atmospheric agents material. The hot air distribution panels are insulated by means of a 50-mm. mineral wool layer and an outer panel in galvanised sheet steel.
